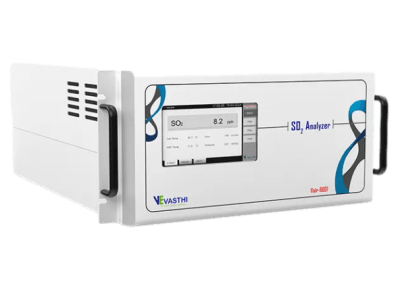

SO2 & H2S ANALYZER MODEL VAIR-9001-VASTHI INSTRUMENTS (INC IGV) US EPA Reference Number EQSA-0225-267

El analizador de SO₂ Vair-9001 está diseñado para la medición precisa de concentraciones ultrabajas de dióxido de azufre en el aire ambiente mediante el método de fluorescencia UV. Una lámpara UV de alta estabilidad garantiza una sensibilidad constante, mientras que un avanzado sistema interno elimina la interferencia de hidrocarburos para obtener lecturas precisas.

Measuring Items - SO & HS in Ambient Air
Measuring Method - Ultraviolet Fluorescence Method (UVF)
Ranges - SO: 0–0.1 / 0–0.5 / 0–1 ppm (Selectable)
HS: 0–500 / 0–1000 / 0–2000 ppb (Selectable)
Lower Detectable Limit - < 0.5 ppb
Repeatability - Within ±1% of span gas concentration
Zero Drift - < 2 ppb
Span Drift - Within ±1% of full scale (24 hours)
Response Time (T95) - < 90 seconds
Linearity - Within ±1% of full scale
Precision - 0.5% of reading or 1 ppb
Ambient Temperature - 0–40°C
Analog Output - 0–1V / 0–5V or 4–20 mA (Optional)
Sample Flow Rate - 800 cc/min (Critical Orifice Controlled)
Particulate Filter - 47 mm Teflon Filter
Display - 7-inch Graphic LCD
Communication Ports - Ethernet, USB, RS-232, RS-485
Internal Data Memory -1-minute data logging up to 1 year, operation history, alerts
Power Requirement - 220 VAC / 60 Hz or 230 VAC / 50 Hz
