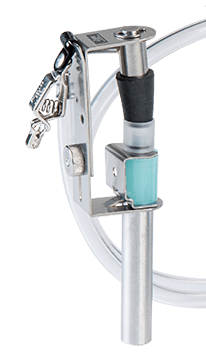

Holder Assembly for ih Cassettes -ZEFON,10044015 (INC IGV) ZEFON

Clamp For Gravimetric Holder

The purpose of this Clamp is to keepthe Vortex Finder properly positioned in the Cyclone.

To install clamp

1. With Cyclone Assembly removed from the Holder, slide the Clamp onto the Cyclone - One leg over the Vortex finder, and the other under the shoulder of the Cyclone - until the step- bend of the Clamp butts against the flat surface of the Cyclone.

2. Insert Cyclone ( w/clamp) into the tube guard. The lug on the Holder lower bracket properly orients both Cyclone and Clamp.

To remove clamp

1. Withdraw Cyclone (w/clamp)from the holder and slide the Clamp off the Cyclone.
